Detect gas leaks, partial discharges, and abnormal equipment noise

132-channel MEMS microphone array

2kHz~65kHz wide frequency range

Intelligent noise reduction

±1cm positioning accuracy

See Heat. Find Problems. Act Faster.

Designed for electrical inspection, equipment maintenance and industrial diagnostics. The INSIZE 0231-IC650 makes thermal inspections simple and efficient.

256 × 192 IR detector with Super Resolution

Four image modes: IR, VIS, MIF, PIP

INSIZE 5301 is a 3D Motorized Rotation Microscope built for surfaces that standard microscopes simply can't reach — convex parts, inner hole walls, complex geometries.

360° motorized rotation

15X–100X magnification | 45° oblique view angle

1080P HD image & video — saved directly to USB

LED ring illumination

The INSIZE ISD-Q Series CNC Vision Measuring System delivers large-range, high-accuracy non-contact inspection.

Measuring range: 500×600×200mm

X/Y accuracy: ≤(2.5+L/200)µm

Motorized zoom: 0.6X~8.0X (13.3:1 continuous zoom ratio)

Auto Excel/PDF/TXT report output

Optional probe & laser probe

Choosing a height gauge? Here's the INSIZE lineup

ISHH-V — Versatile 1D measurement, ruby stylus, extends up to 1023 mm

DHG-D — Air-cushion system, effortless movement, workshop-ready

DHG-V — 2D coordinates + plane angles, color touch screen, lab-grade

Introducing the INSIZE Coordinate Measuring Machine

Built for: Automotive | Precision Moulds | 3C Electronics

Moving-bridge + air bearing design for rock-solid stability

Full granite structure — no thermal drift, no deformation

Renishaw grating & probe systems on every model

Measurement that moves with your production line.

Introducing the INSIZE Workshop CMM — built for real production conditions.

Connects directly to automated production lines

3× faster acceleration vs. conventional CMMs

Dust-proof. Compact. No compressed air needed.

INSIZE ISM-CT600 | 4K Cutting Tools Microscope

Dual 27" display

23X–230X

Resolution: 3840x2160

Rotary slide table with 0–220° rotation

INSIZE ISM-CT600 | 4K Cutting Tools Microscope

Dual 27" display

23X–230X

Resolution: 3840x2160

Rotary slide table with 0–220° rotation

One gauge. Every thickness challenge solved

The INSIZE ISU-800D delivers rock-solid accuracy with:

Real-time temperature compensation

Through-coating substrate measurement

Single & dual element transducer support

Upgrade Your Quality Inspection with the INSIZE Flexible Automated Inspection System!

Fully automated feeding, inspection & sorting

Multi-machine synchronized inspection (Vision + Hardness + CMM)

Product changeover in under 1 minute

Real-time SPC monitoring & full traceability

Complex workpieces? Batch measurements? Data confusion?

INSIZE customization solutions help improve measuring efficiency and accuracy.

From calipers and micrometers to SPC stations and automatic measurement systems, we provide customized solutions for kinds of industrial measurement needs.

Measure Anywhere. Inspect with Precision.

INSIZE Separable Type Roughness Testers make surface inspection easier for large and complex workpieces.

Separable probe design for flexible, multi-angle measurement

Handles small holes (Ø2 mm) & deep grooves (15 mm)

Custom Thread Inspection Made Easy

INSIZE TCM Automatic Thread Inspection Machine delivers precision + customization for your workflow.

Custom fixtures & gauges for different parts, adaptable to various applications

Stop Scraping Gears. Start Measuring on the Machine.

Eliminate secondary clamping risks with INSIZE Internal Spline & Involute Gear Gauge 4655.

On-Machine Testing: Measure M-values directly—no disassembly, no scrap.

Customization That Fits Your Production - SPC Measurement Station

INSIZE SPC Measurement Station helps you control quality in real time — reducing defects and improving efficiency from the source.

[Case Study] INSIZE x Indian Automotive Manufacturer

Real-Time Data, 30% Efficiency Boost!

See How INSIZE IIoT Transforms Quality Control

Still stuck with manual data recording? Not anymore.

Struggling with complex surface measurements?

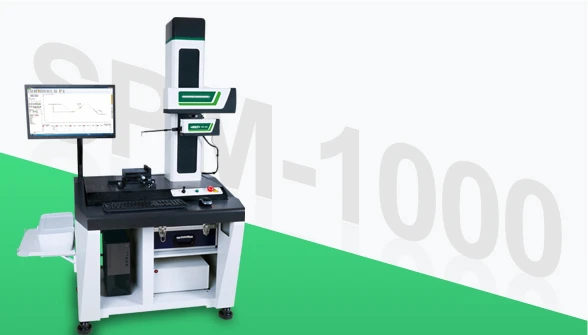

Meet the INSIZE SPM Series Surface Profile Measuring Machine - Ideal for ball screws, linear guides, bearings & engine sealing surfaces

High accuracy with 1:2.2 lever ratio

Smooth, high-speed measurement (no skipping)

[Case Study] INSIZE x Top Indian Orthopedic Implants Mfg.

400% Efficiency Boost!

See How INSIZE Automates Medical Device Inspection

Manual inspection bottlenecks? Not anymore.

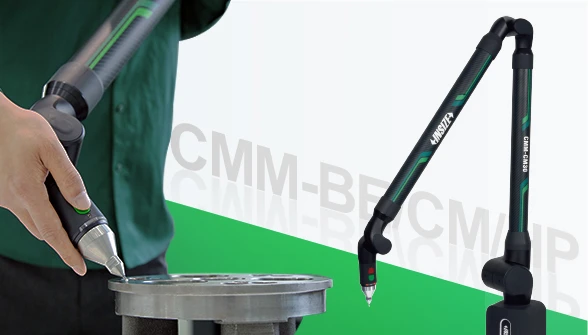

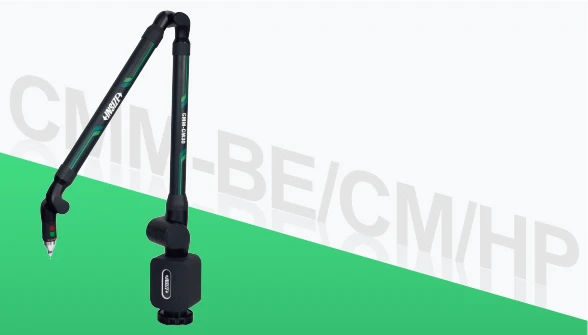

INSIZE Measuring Arms: Accuracy on the Move Bring the lab to your parts with the BE, CM, and HP Series.

Aerospace-grade carbon fiber

Measuring reach from 1500mm up to 4500mm

10-hour runtime with dual high-performance batteries

Optional 7-axis laser probes capture 1.2M points per second

How to Choose the Right Spectrometer?

Different testing tasks require different spectrometers. At INSIZE, we offer a range of solutions for various material analysis needs.

XRF Multi-function Analyzer

XRF Plating Thickness Instrument

Can digital measuring really be this fast?

Alex: “70+ measurements… done in 3 minutes 13 seconds? No way.”

Tom: “True. That's the power of INSIZE data-transmission measuring tools.”

Precise measurement

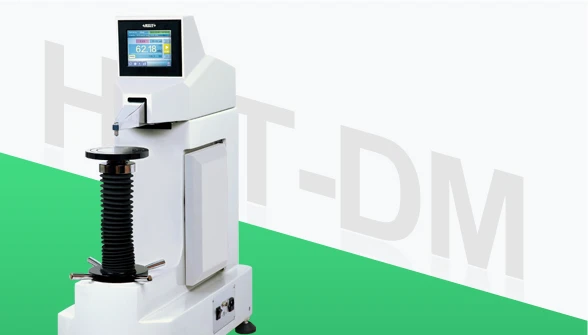

Hardness Testing Made Easy for Inner Walls

The INSIZE HDT-DM Motorized Digital Rockwell Hardness Tester is designed for ring-shaped and tubular workpieces.

Dolphin-nose indenter (ID ≥ 35 mm)

Electric motor force loading (no weights)

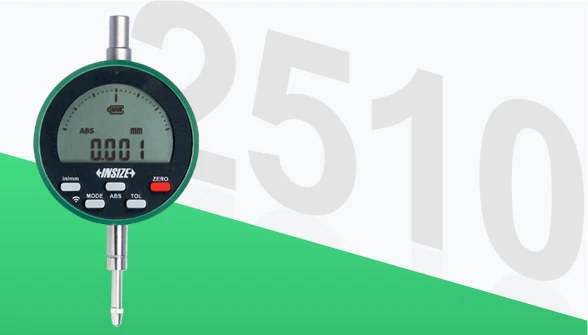

INSIZE Built-in Bluetooth Digital Indicator 2510

Max / Min / Runout at a glance

GO / NOGO judgment

Metric–Inch & reversible direction

20m Bluetooth to INSIZE.DMS App

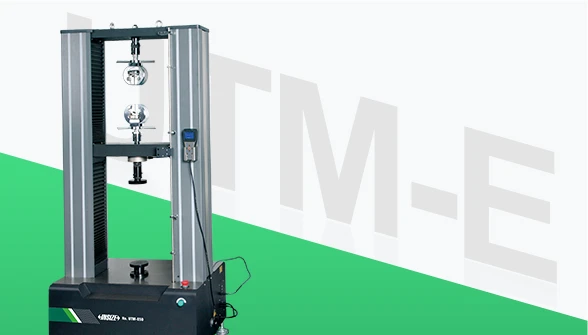

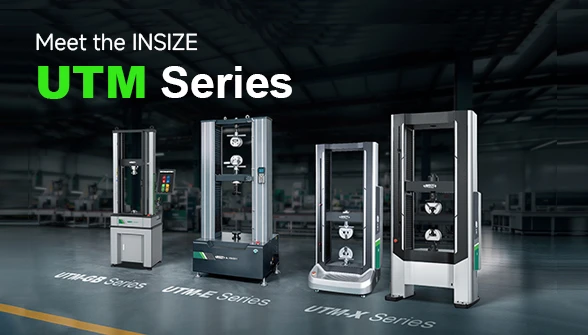

Reliable Material Testing UTM-E Series

The INSIZE UTM-E Series is used to test the mechanical properties of metals, plastics, rubber, ceramics, and composite materials, supporting research and quality control across different applications.

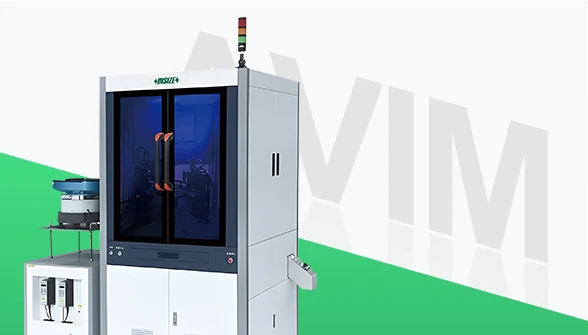

INSIZE AVIM – Automatic Vision Inspection Machine

Key Features:

Automatic inspection of large quantities of workpieces

Size measurement & surface defect detection

Automatic sorting

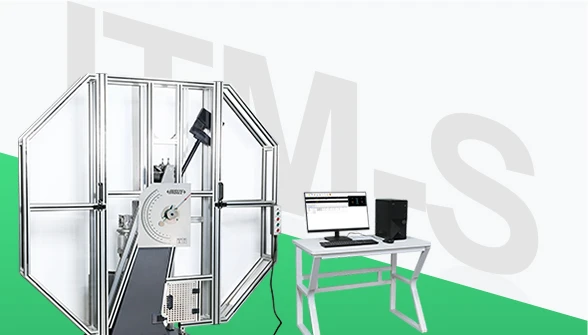

INSIZE ITM-S Series Impact Testing Machines

For testing the anti-impact performance of metal materials under dynamic load

150J–750J full energy range

Semi-automatic operation with automatic pendulum return

Precision meets flexibility

INSIZE Portable Measuring Arms CMM

Built for fast, on-site measurement with high accuracy and flexibility.

High precision

360° flexible measurement

From manual to fully automated, the RBT-QM01 Automated Measurement System

From manual to fully automated, the RBT-QM01 Automated Measurement System combines robotic handling, quick measurement, and roughness testing to deliver faster, more precise inspections.

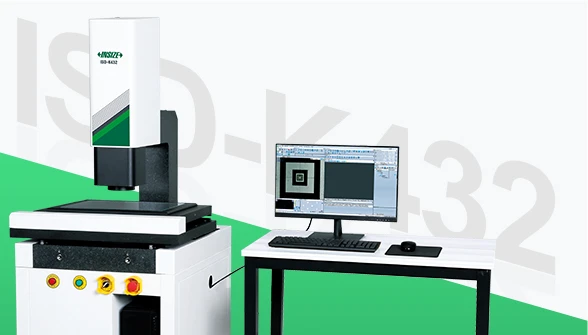

New! INSIZE ISD-K Series CNC Vision Measuring Systems

High precision: Measurement accuracy ≤(2.0+L/200)μm

Objective: 13.3:1 continuous zoom ratio for flexible inspection

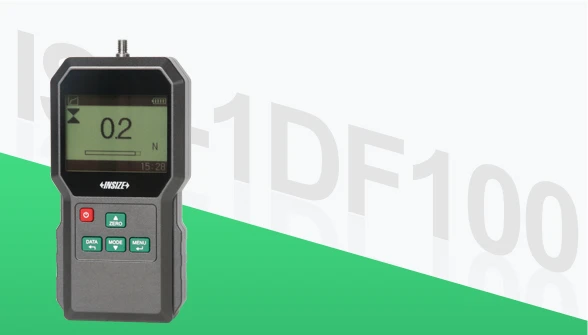

INSIZE ISF-1DF100 Digital Force Gauge

High accuracy: ±0.3%FS, metal casing design, backlit LCD display, stable and durable.

Two display modes: maximum value display and real-time display.

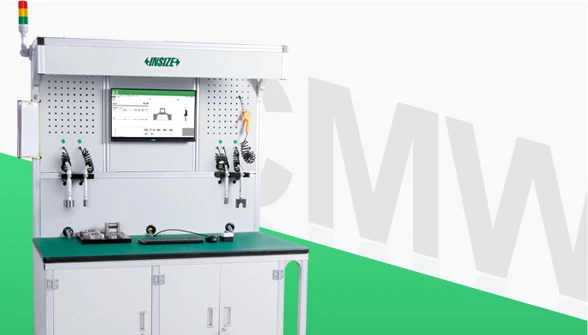

INSIZE SPC Measurement Station

Live data collection & analysis

Works with multiple gauges & customized inspection tools

Guided operation with indicator lights

Discover precision in every click!

Discover precision in every click!

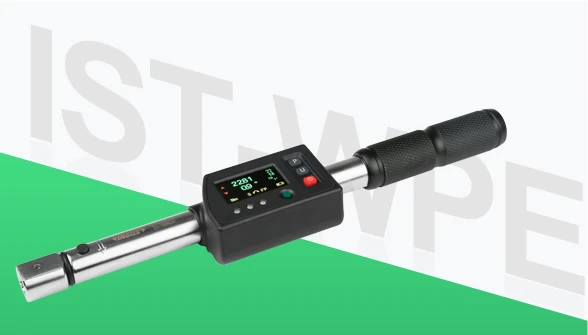

Our Interchangeable Head Digital“Click” Torque Wrench (WiFi LAN) IST-WPE Series, combines mechanical reliability with smart digital control.

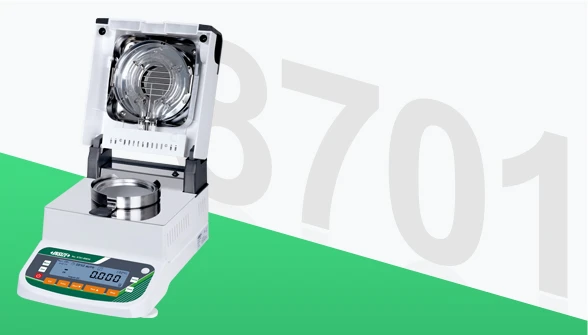

Moisture Analyzer 8701-RM30

The INSIZE Moisture Analyzer 8701-RM30 delivers accurate results for food, pharma, soil, chemical, and cosmetic applications.

See it in action with solution and grain moisture testing — featuring an LCD display and halogen heating for efficient drying.

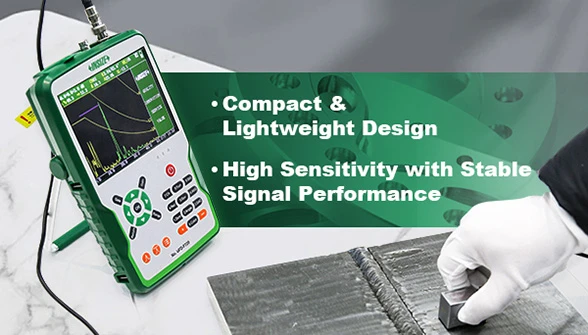

INSIZE UFD-F720 Digital Ultrasonic Flaw

Detector Slim, clear, and precise.

5.7" true-color display

200 flaw detection channels

High sensitivity & accurate results

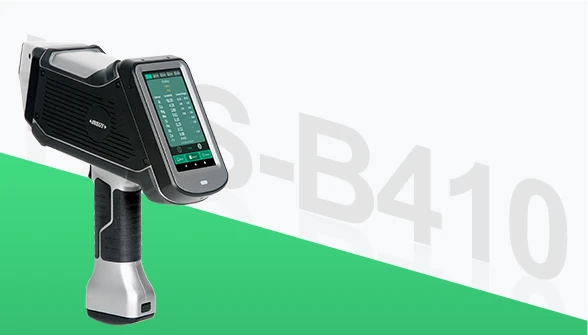

Meet the INSIZE HLS-B410 Handheld LIBS Spectrometer

Meet the INSIZE HLS-B410 Handheld LIBS Spectrometer – your solution for quick alloy identification without complex setup and radiation.

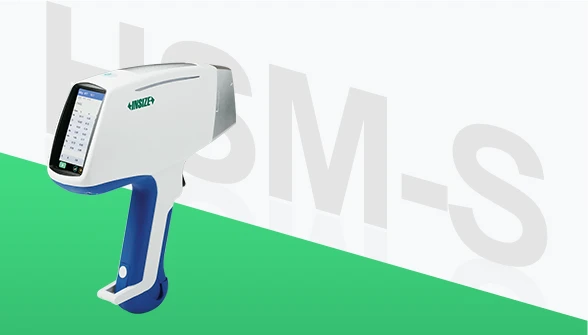

Meet the INSIZE HSM-S Series Handheld XRF Alloy Analyzer!

Identify alloys in seconds – fast, accurate, and non-destructive

Supports metal scrap recycling & quality control in manufacturing

Access 380+ built-in grade libraries or create your own

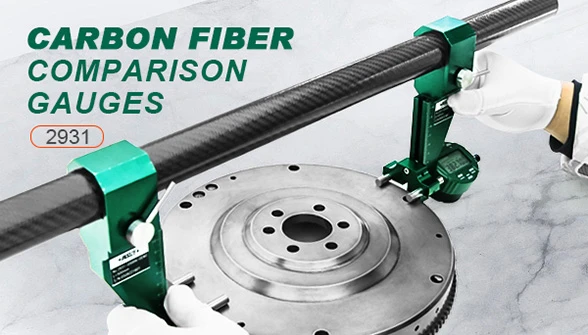

INSIZE 2931 Carbon Fiber Comparison Gauge

Carbon fiber beam: lightweight, deformation-resistant, and temperature-stable

Measuring range up to 9000 mm

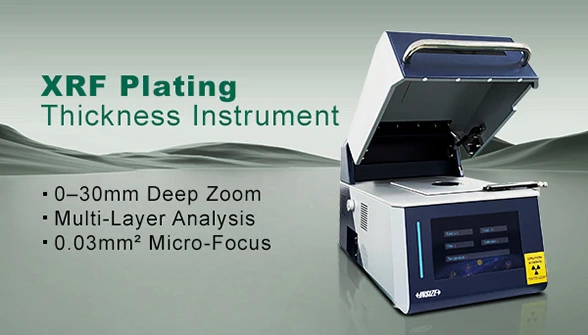

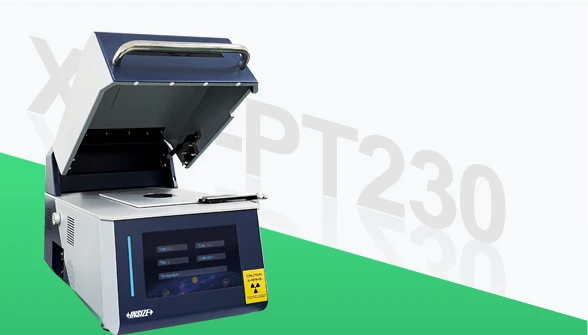

INSIZE XRF Plating Thickness Instrument Accurate, fast, and fully non-destructive plating thickness measurement.

Detects up to 90 elements, with a detection limit as low as 0.005μm.

Manual zoom technology enables precise testing even in deep recesses up to 30mm.

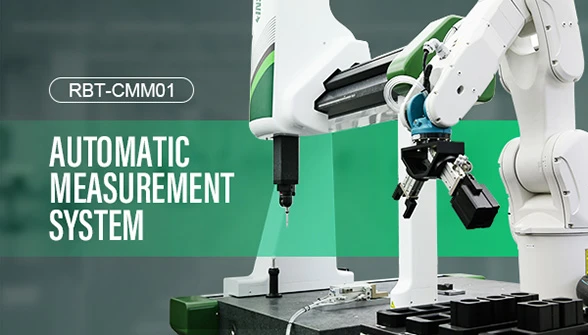

INSIZE AUTOMATIC MEASUREMENT

SYSTEM RBT-CMM01 A fully automatic measurement solution combining INSIZE robotic arm + CMM.

High-precision inspection

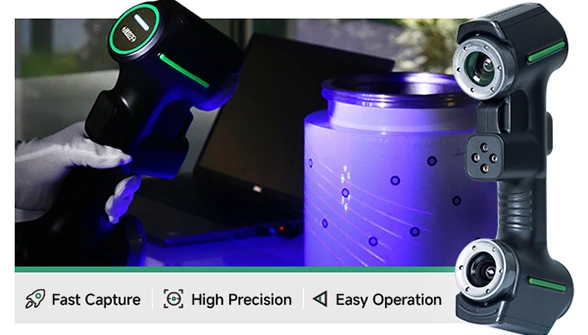

Meet the INSIZE Handheld 3D Scanner LSM-L340

Scan 5.4M points per second

Deliver Al-powered accuracy

From industrial measurement to cultural relic restoration and smart cities — the application potential is limitless!

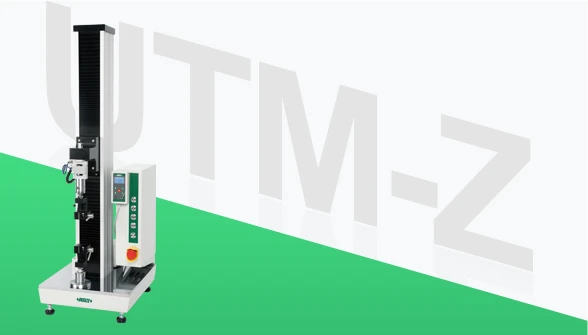

INSIZE UTM-Z Series

Electronic Universal Testing Machine, Experience it Now!

High-speed. Ultra-quiet. Customizable.

Supports force testing up to 5000N

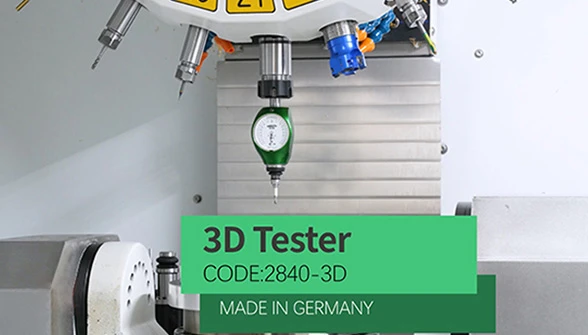

INSIZE 3D Tester

Designed specifically for CNC machines, machining centers, and grinders.

Measure X/Y/Z axes with ease: quickly locate workpiece coordinates, hole centers, and depths.

Zoom in. See more. Measure smarter.

Discover the ISM-H5000 – our advanced 3D measuring microscope with up to 6000x magnification, automatic focus stacking, and full 2D/3D measurement capabilities.
