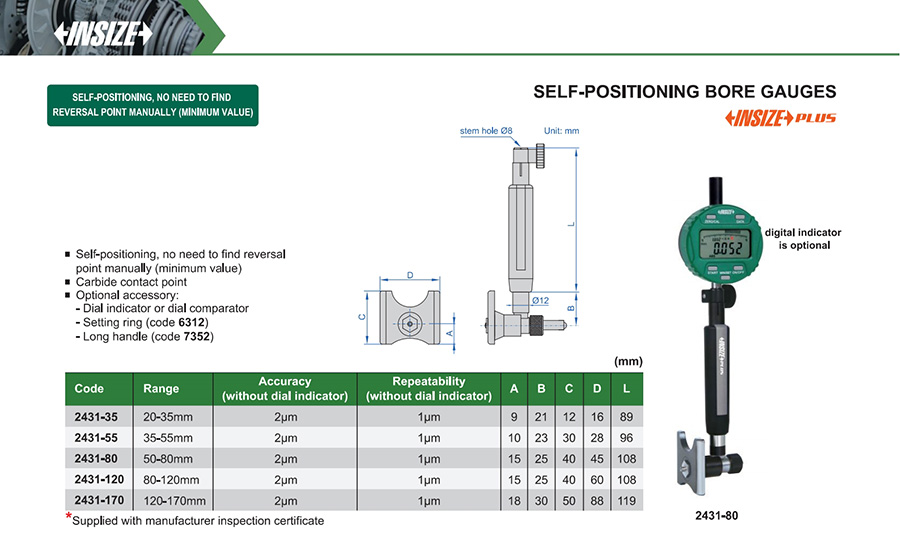

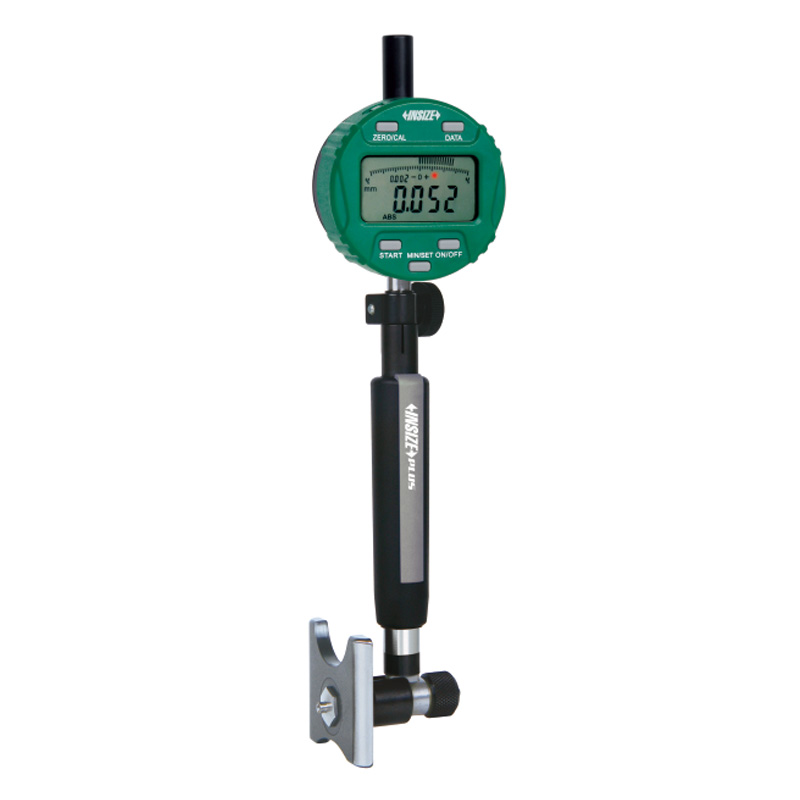

Self-Positioning Bore Gauges
Code: 2431
Self-positioning, no need to find reversal point manually (minimum value)
Carbide contact point
| Code | Range | Accuracy | Repeatability |
|---|---|---|---|
| 2431-35 | 20-35mm | 2µm | 1µm |
| 2431-55 | 35-55mm | 2µm | 1µm |
| 2431-80 | 50-80mm | 2µm | 1µm |
| 2431-120 | 80-120mm | 2µm | 1µm |
| 2431-170 | 120-170mm | 2µm | 1µm |
